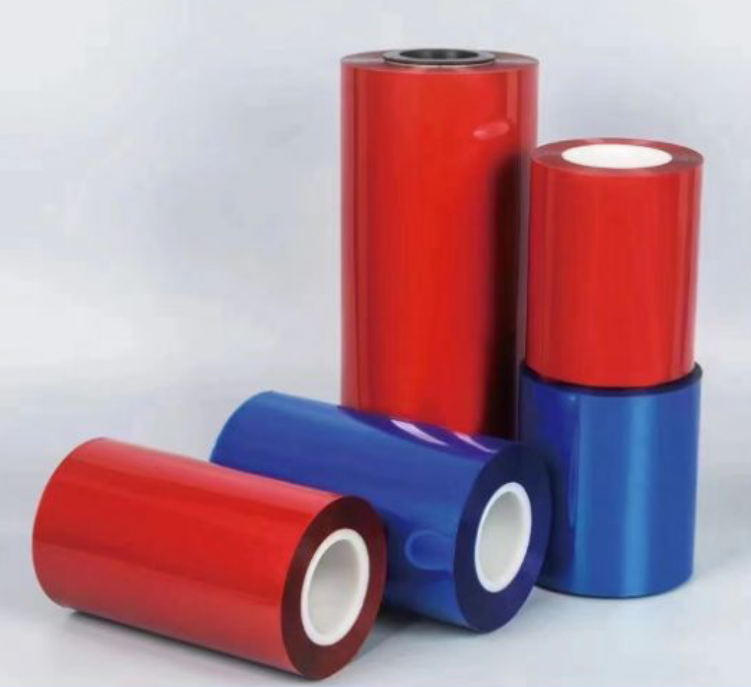

Product Introduction:
Good heat resistance/ High brightness/easy to be coated and processed/ High Cleanness/High heat stability/Insoluble in Common solvents and petrol.
Mainly used for labels, release film tape, protection film tape, insulation tape.
Product Data Sheet:
NOMINAL THICKNESS | 23～125μm | METRIC UNITS | ||
Property | TEST METHOD | UNIT | TEST VALUE | |
AVERGE THICKNESS TOLERANCE | ASTM D374 | % | ±2 | |
TENSILE STRENGTH ≥ | MD | ASTM D882 | Mpa | 190 |
TD | 225 | |||
ELONGATION ≥ | MD | ASTM D882 | % | 125 |
TD | 110 | |||
MODULUS ≥ | MD | ASTM D882 | Mpa | 4300 |
TD | 4800 | |||
HEAT SHRINKAGE≤ | MD | ASTM D 1204 150℃/30min | % | 1.4 |
TD | 0.5 | |||
Haze ≤ | ASTM D1003 | % | 4 | |
TRANSMITTANCE | ASTM D1003 | % | 96.4 | |
CHROMA | DIFFERENT THICKNESS,Different Chroma | |||
Gloss(45º) ≥ | ASTM D2457 | ﹣ | 128 | |
WETTING TENSION≥ | ASTM D2578 | dyne/cm | 56 | |
Explain:
1.Wetting tension test is only applicable to corona treated film.
2.The results should, however, only be regarded as a general guide to material properties and not as a guarantee.
