Product Introduction:

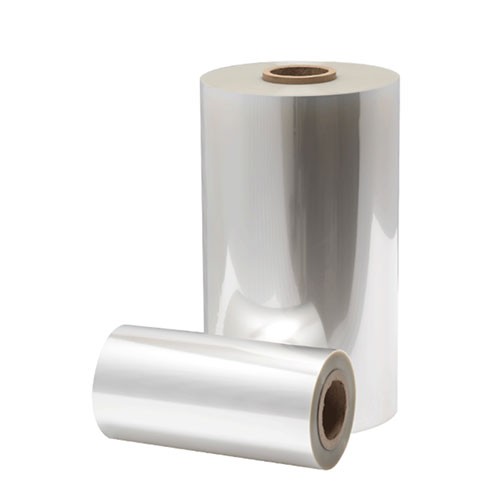

Chemical coated BOPET film, Non-chemical coated or metalized.
High Transparency, High Cleanness, High heat stability, Insoluble in Common solvents and petrol, Excellent Insulation performance. Chemical coated BOPET film or Non-chemical coated.
Mainly used for window color printing and multi-laminated packaging.
Product data sheet:
NOMINAL THICKNESS | 23～125μm | METRIC UNITS | ||
PROPERTY | TEST METHOD | UNIT | TEST VALUE | |
AVERGE THICKNESS TOLERANCE | ASTM D374 | % | ±2 | |
TENSILE STRENGTH≥ | MD | ASTM D882 | Mpa | 200 |
TD | 210 | |||
ELONGATION≥ | MD | ASTM D882 | % | 110 |
TD | 100 | |||
MODULUS≥ | MD | ASTM D882 | Mpa | 4000 |
TD | 4500 | |||
HEAT SHRINKAGE≤ | MD | ASTM D 1204 150℃/30min | % | 2 |
TD | 0.5 | |||
HAZE≤ | ASTM D1003 | % | 3.5 | |
GLOSS（45º）≥ | ASTM D2457 | ﹣ | 128 | |
WETTING TENSION≥ | ASTM D2578 | dyne/cm | 50 | |
C.O.F(IN/OUT) | ASTM D 1894E | μs/μk | 0.65/0.55 | |
Explain:
1.Wetting tension test is only applicable to corona treated film.
2.The results should, however, only be regarded as a general guide to material properties and not as a guarantee.
